Name: Tungsten Target
Brand: Baoji City Changsheng Titanium Co., Ltd.

Tungsten Target

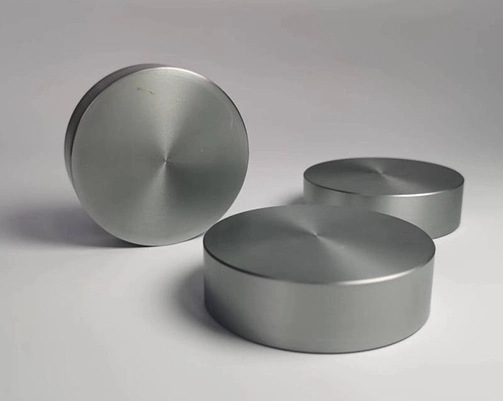

Tungsten targets include tungsten plane targets (tungsten round targets and tungsten strip-type targets) and tungsten rotating targets.

Tungsten plane targets are formed by processing high-quality plates of our company, and feature high density, no crack and sand hole inside, bright surfaces, uniform color and luster as well as accurate dimensions.

Small tungsten rotary pressing targets are processed by high-quality bars, and feature accurate dimensions, smooth surface, high purity, etc.

Tungsten rotating targets of the conventional size are produced by a hot isostatic pressing process, and feature high density (19.25 g/cm3), fine grains and good molding.

Conventional density: 19g/cm³~19.2g/cm³;

Special process density: more than 19.25g/cm³.



GET A QUOTE

Tungsten Target Specifications

Tungsten Target Parameters
Element	W
Purity	≥99.95%(3N5)
Typical sample dimension	12mm×80mm×100mm
Density	19.25 g/cm3 (HIP)
Hardness	HV5:280-310
Grain Size	43μm
Appearance	Ra≤0.4μm
Impurity Content (powder)	Ti	≤10ppm	Ni	≤6ppm
	Na	≤5ppm	Pb	≤1ppm
	C	≤20ppm	P	≤8ppm
	Ca	≤10ppm	Cu	≤5ppm
	Mg	≤7ppm
	Si	≤10ppm
	Al	≤5ppm
	As	≤10ppm
	Fe	≤10ppm

Tungsten Target Application

Widely used in flat display, solar cell, integrated circuit, automotive glass, microelectronics, memory, X-ray tube, medical equipment, melting equipment and other products.

Tungsten Target Alloy Series

In addition to tungsten targets, we can also provide tungsten-titanium, silver- tungsten, tungsten-molybdenum, nickel-tungsten, tungsten trioxide, tungsten sulfide, tungsten diboride, tungsten oxide and other sputtering targets.

What Is The Function Of The Tungsten Target?

The tungsten target is a part of the anode that is strategically set at a 45-degree angle in the copper block. This specific positioning is designed to increase the surface area that will be interacting with the incoming electrons. This interaction is vital in the production of X-rays in medical imaging devices, as well as in the creation of thin films in electronics.

Moreover, the 45-degree angle helps to more evenly distribute the heat across the target. This is a critical feature as it prevents the metal from melting, ensuring the longevity and performance of the equipment.
