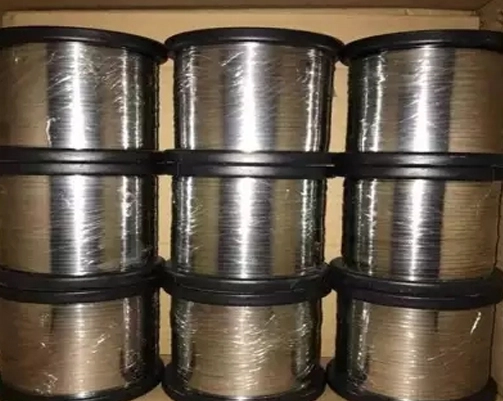

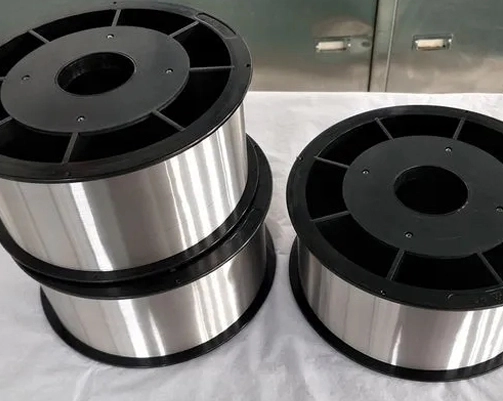

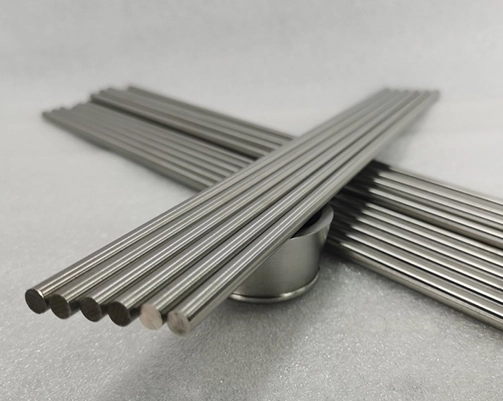

Name: Tantalum Rod Bar/Wire
Brand: Baoji City Changsheng Titanium Co., Ltd.

Tantalum Rod Bar/Wire Specification

Chemical Composition

Elements	RO5200	RO5400	RO5255	RO5252	RO5240
Elements	%wt., no more than(Max.)
C	0.010	0.010	0.010	0.010	0.010
O	0.015	0.03	0.015	0.015	0.020
N	0.010	0.010	0.010	0.010	0.010
H	0.0015	0.0015	0.0015	0.0015	0.0015
Nb	0.10	0.10	0.10	0.50	35.0～42.0
Fe	0.010	0.010	0.010	0.010	0.010
Ti	0.010	0.010	0.010	0.010	0.010
W	0.050	0.050	9.0～11.0	2.0～3.5	0.050
Mo	0.020	0.020	0.020	0.020	0.020
Si	0.005	0.005	0.005	0.005	0.005
Ni	0.010	0.010	0.010	0.010	0.010

Mechanical Requirements (annealed condition)

Rod Diameter 0.125" (3.18mm)~2.5" (63.5mm)
Grade	Tensile strength psi (MPa) ≥	Yield strength psi (MPa) ≥	Elongation in　1 inch gage length ％ ≥
RO5200/RO5400	25000 (172)	15000 (103)	25
RO5252	40000 (276)	28000 (193)	20
RO5255	70000 (482)	55000 (379)	20
RO5240	35000 (244)	15000 (103)	25
Wire Diameter inch (mm)
Grade	Diameter inch (mm)	tensile strength psi (MPa) ≥	Elongation ％ ≥
RO5200/RO5400	0.010(0.254)~0.0149(0.379)	35000 (241)	10
	0.015(0.381)~0.0249(0.633)	35000 (241)	15
	0.025(0.635)~0.124(3.14)	30000 (207)	20
RO5252	0.010(0.254)~0.0149(0.379)	40000 (276)	5
	0.015(0.381)~0.0249(0.633)	40000 (276)	10
	0.025(0.635)~0.124(3.14)	40000 (276)	15
RO5255	0.010(0.254)~0.0149(0.379)	70000 (482)	5
	0.015(0.381)~0.0249(0.633)	70000 (482)	10
	0.025(0.635)~0.124(3.14)	70000 (482)	15
RO5240	0.010(0.254)~0.0149(0.379)	35000 (244)	10
	0.015(0.381)~0.0249(0.633)	35000 (244)	15
	0.025(0.635)~0.124(3.14)	35000 (244)	20

Note: Diameter ≤0.05 inch (1.27 mm), the range is 10 inches (254 mm),diameter > 0.05 inch (1.27 mm), the distance is 1 inch (25.4 mm) or 2 inches (50.8 mm)

Specifications & Tolerances

Diameter inch (mm)	Tolerance < ±inch (mm)
0.010~0.020 excl (0.254~0.508)	< 0.0005 (0.013)
0.020~0.030 excl (0.508~0.762)	< 0.00075 (0.019)
0.030~0.060 excl (0.762~1.524)	< 0.001 (0.025)
0.060~0.090 excl (1.524~2.286)	< 0.0015 (0.038)
0.090~0.125 excl (2.286~3.175)	< 0.002 (0.051)
0.125~0.187 excl (3.175~4.750)	< 0.003 (0.076)
0.187~0.375 excl (4.750~9.525)	< 0.004 (0.102)
0.375~0.500 excl (9.525~12.70)	< 0.005 (0.127)
0.500~0.625 excl (12.70~15.88)	< 0.007 (0.178)
0.625~0.750 excl (15.88~19.05)	< 0.008 (0.203)
0.750~1.000 excl (19.05~25.40)	< 0.010 (0.254)
1.000~1.500 excl (25.40~38.10)	< 0.015 (0.381)
1.500~2.000 excl (38.10~50.80)	< 0.020 (0.508)
2.000~2.500 excl (50.80~63.50)	< 0.030 (0.762)

Tantalum Rod Bar/Wire Applications

Tantalum and tantalum alloy rods (such as Ta-2 5W, Ta-10W, Ta-40Nb etc.) have the characteristics of high melting point, corrosion resistance and good cold working performance. They are widely used in aviation and aerospace industry, high temperature technology, atomic energy industry and chemical industry, mainly used in the production of supersonic aircraft, rocket engine, spacecraft combustion chamber parts, high temperature resistant furnace parts, etc. Resistance to nitric acid, sulfuric acid, hydrochloric acid corrosion parts, etc.
